Ip speaker phone

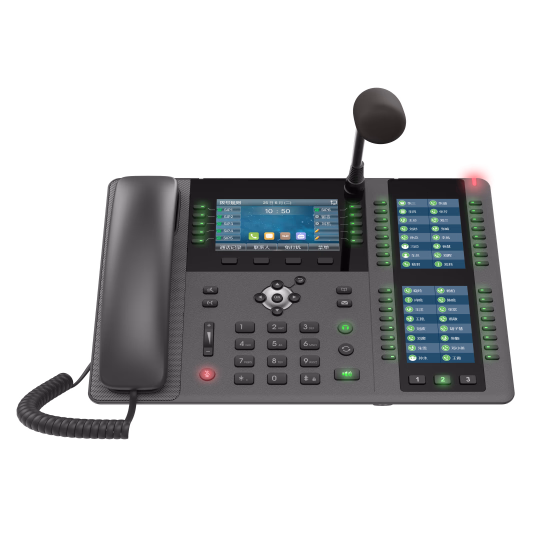

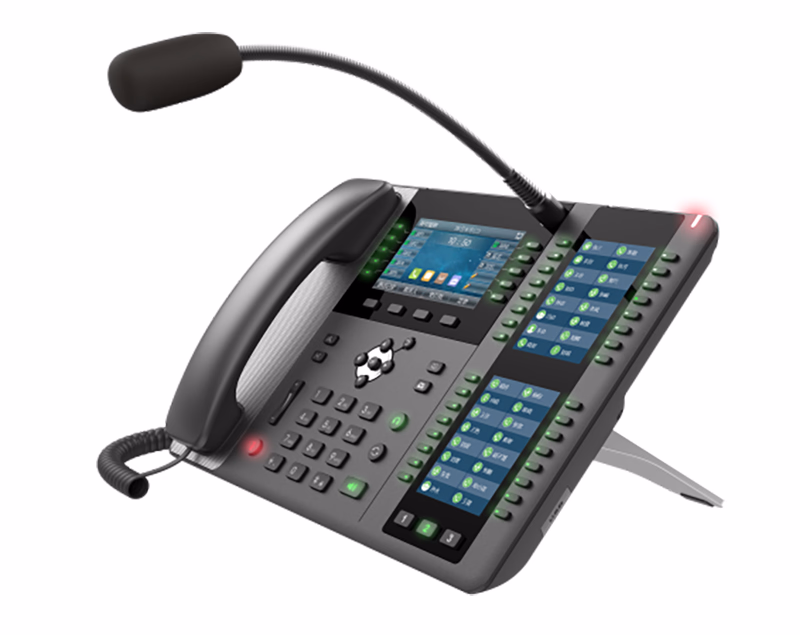

SC-SP03 ip speaker phone is a visual paging station product specially developed for the needs of industry users . It is equipped with a gooseneck microphone and supports high-definition hands-free calls. It has intelligent programmable buttons and can be set up with a one-button calling function to improve enterprise Compatible standards SIP Protocol, can be used as a monitoring center, leadership office management host, It can call, two-way intercom, monitor / survey, and broadcast to the host and extension within the management area . It enables enterprises to maximize their daily business management efficiency and emergency response capabilities.
Feature Highlights
- intelligent DSS Button corresponding display screen – can be displayed dynamically 3 Each page can be set to display 32
- indivual DSS The state of the key, plus the home screen 10 indivual D SS Keys, total support up to 106 indivual
- DSS Custom configuration of the key. Each DSS The key can be set to Line/BLF/ speed dial extension, etc.
- Gooseneck microphone — external microphone with movable directional pattern
- Gigabit Ethernet – Auto-sensing 10/100/1000Mbps network port, providing high-speed network transmission Lose, support PoE powered by.
- Support connecting Bluetooth headsets (built-in Bluetooth) Support external Wi-Fi dongle
- support EHS earphone
- Cost-effective and green product design concept, high resolution TFT Color display, providing Rich visual experience.
- support H.264 video decoding, can bind camera, position video access control , accept video calls,
- View the access control video through the main screen of the paging station to achieve remote door opening and interconnection.
Physical Specifications
| Main screen | x1: 4.3 Inch (480×272) color screen |
|---|---|
| DSS Display | x2: 3.5 Inch (320×480) color screen |
| Keyboard | 77 buttons, including:
|
| HD controller (RJ9) | x1 |
| Standard RJ9 Handle curve | x1 |
| 1.5M CAT5 Network cable | x1 |
| Goose neck microphone | x1
|
| Phone stand | x1 |
| Goose neck microphone interface | x1: goose neck microphone x1 |
| RJ9 interface | x2: handle x1, earphone x1 |
| RJ45 interface | x2: Network x1, PC x1 (Network Bridge Mode) |
| USB2.0 Interface | x1: Standard A x1, connection USB Wi-Fi adapter or USB |
| DC input | 5V/2A |
| Power consumption (PoE) | 2.9~7.9W |
| Power consumption (power adapter) | 2.54~6.4W |
| Working temperature | 0~45 ℃ |
| Relative humidity | 10~95% |
| Installation method | Desktop |
| Color | Dark Gray |
Q: What’s the packaging size for this product?
A: The packaging size is 323 x 301 x 71mm，10pcs/box.
