Explosion Proof Telephone Set SC-EP01
Brief Introduction
The SC-EP01 industrial explosion-proof telephone set is ideal for applications in hazardous area ,such as petroleum, chemical industry,underground pipe corridors, metal mines,subway and highway tunnels, various power plants, ship docks, oil fields,steel factories,outdoor jungles,large production workshops.PT-FS2-EX are fully compliant with the CE, RoHS, ISO9001: 2008, TUV.
Product Features
Material & Protection
The material is robust aluminum alloy die-cast, protecting the system’s internal electronics,as well as IP67 degree ex proof,waterproof, moisture-resistant, dust-resistant, and freeze-resistant.
Network Protocol
Support SIP standard network protocol, 36-48V program-controlled switch and optical fiber direct connection
Alarm System
This system includes a 30W PA system and LED strobe light, providing both audible and visual alerts for incoming calls.
Speed Dial
Can pre-store multiple speed dial numbers;
Auto Broadcasting
Supports ringing count detection, automatically broadcasting after ringing
Group Call
Supports one-key group call broadcasting (no server cooperation required)
LED Indicator
LED light flashes when a call comes in to avoid mis-picking;
Intercom Function
Equipped with an intercom button for broadcasting intercom

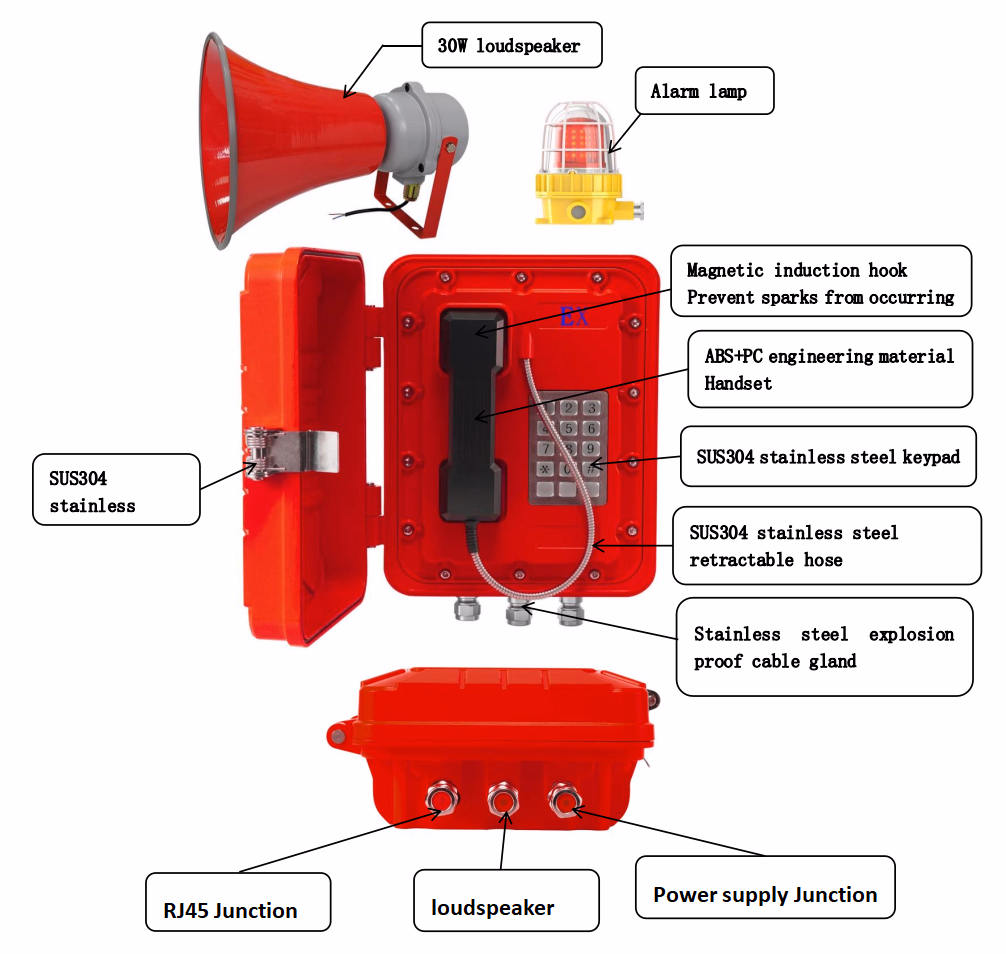

Durable Construction
Uses stainless steel keyboard and stainless steel handset pull cord,preventing violent disassembly
Sturdy Door Latch
The stainless steel door latch is not easily blown open by the wind when installed outdoors.
Basic Parameters
| Parameter | Specification |
|---|---|
| Size | 346*301*138MM |
| Weight | 8.5KG |
| Explosion-proof marking | Ex db ib IIC T6 Gb/Ex tbllIC T80℃ Db |
| Shell material | Aluminum alloy |
| Keyboard material | stainless steel |
| color | Red, yellow (optional) |
| Communication mode | SIP protocol, analog, and direct fiber optic |
| Installation method | Wall-mounted |
| Power supply | 220V power supply (POE and DC are optional) |
| Protection level | IP66 |
| Operating temperature | -20℃ to +80℃ |
| Operating humidity | 10-95% |
Product Configuration
Network
- Support SIP V1 (RFC2543), V2 (RFC3261) protocol
- Support backup server
- Supports proxy servers and peer-to-peer connection modes
- Support stationary IP / DHCP / PPPoE dialing
- Support TFTP / DHCP / PPPoE client side
- Support Telnet / HTTP / HTTPS services
- Support network time SNTP protocol
- Support DNS SRV (RFC3263)
- Support DNS client side, built-in NAT / DHCP service
- Support STUN intranet penetration
- Supports three DTMF modes: in-band, RFC2833, SIP INFO
- Support for bridge and router modes
- Support web account login
Audio
- Supports broadband high definition coding: L16G and G.722;
- Support G.711a / u, G.726, G.729a / b, G.723, iLBC and other compression coding;
- Support VAD (silent dete ction), CNG (comfortable noise);
- Support AJB (automatic jitbuffer); AEC (acoustic echo cancellation); AGC (automatic gain control)
Special Features
- One-click IP announcement, long press the hands-free key for about ten seconds and release to automatically announce the IP; (or pick up the handset and input *114* to automatically announce the IP)
- This device provides 3 SIP account registrations. When the first account cannot be registered, it automatically switches to the next account to ensure normal communication.
- Configurable with two emergency keys
- Code introduction: *114* automatically announces the IP address, *115* modifies the IP address via the keyboard, *111* restarts the phone.
- When a call comes in, the alarm light flashes. If no one answers the call at the specified time, the machine will automatically answer the call and the host’s voice will be amplified through the local broadcast.
*115* modifies the IP address via the keyboard
*111* restarts the phone
DIMENSIONS
Product Dimensions Diagram
Frequently Asked Questions
Q:Are there any customized items for explosion-proof phones?
A:Yes, we provide customized services for colors and icons.
Q: Do you offer technical support?
A: Yes, we provide full technical support via email, phone, or live chat for both pre-sales consultation and after-sales service.
