Amplifying weatherproof telephone
Brief Introduction
The Outdoor Weatherproof Telephones feature key strengths like IP66 and IP67 weatherproof certifications. They are ideal for applications in tunnels, railways, highways, oil and gas facilities, plants, factories, mining sites, and poolside areas. Available in both analog and VoIP versions, the model offers crystal-clear audio quality and supports external flash beacons. Options include a spring-loaded door closure, and settings can be programmed and modified locally or remotely.
Product Features
- The ex proof telephone is built tough with a durable aluminum alloy die-casting process.IP67 rating protects it from explosions, water, moisture, dust, and freezing temperatures, keeping the internal electronics safe and reliable.
- The ex proof telephone support both SIP/Voip standard network protocol, 36-48V program-controlled switch and optical fiber direct connection

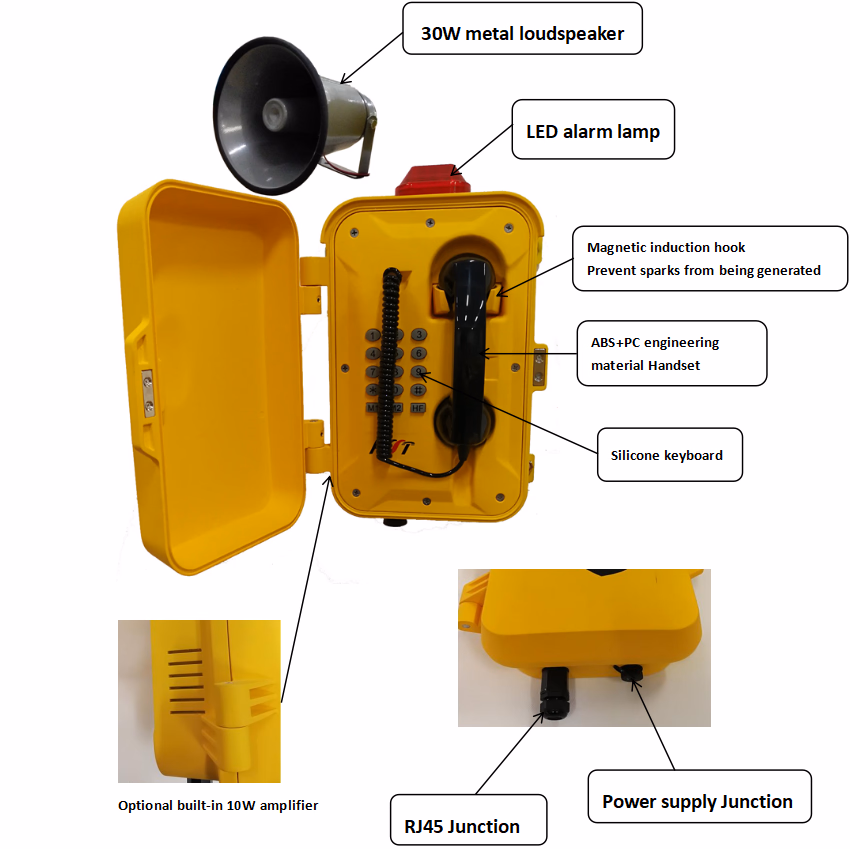

- Equipped with a 30W loudspeaker and LED flashing light to achieve alarm and notification broadcasting when a call comes in;
- Can pre-store multiple speed dial numbers;
- Supports ringing count detection, automatically broadcasting after ringing
- Supports one-key group call broadcasting (no server cooperation required)
- LED light flashes when a call comes in to avoid mis-picking;
- Equipped with an intercom button for broadcasting intercom
- Uses stainless steel keyboard and stainless steel handset pull cord
- The stainless steel door latch is not easily blown open by the wind when installed outdoors.
Basic Parameters
| Size | 356*273*125MM |
|---|---|
| Weight | 8KG |
| Audio output | 30W |
| Shell material | Composite new material |
| Keyboard material | silicone |
| color | Red, yellow (optional) |
| Communication mode | SIP protocol, analog, and direct fiber optic |
| Installation method | Wall-mounted |
| Power supply | 220V power supply (POE and DC are optional) |
| Protection level | IP67 |
| Operating temperature | -20℃ to +50℃ |
| Operating humidity | 10-95% |
Product Configuration
Network
- Support SIP V1 (RFC2543), V2 (RFC3261) protocol
- Support backup server
- Supports proxy servers and peer-to-peer connection modes
- Support stationary IP / DHCP / PPPoE dialing
- Support TFTP / DHCP / PPPoE client side
- Support Telnet / HTTP / HTTPS services
- Support network time SNTP protocol
- DNS SRV (RFC3263)
- DNS client side, built-in NAT / DHCP service
- Supports three DTMF modes: in-band, RFC2833, SIP INFO
- Support for bridge and router modes
Audio
- Supports broadband high definition coding: L16G and G.722;
- Support G.711a / u, G.726, G.729a / b, G.723, iLBC and other compression coding;
- Support VAD (silent detection), CNG (comfortable noise);
- Support AJB (automatic jitbuffer); AEC (acoustic echo cancellation); AGC (automatic gain control)
Special Features
- One-click IP reporting, long press the hands-free button for about ten seconds and release to automatically report IP; (or lift the handset and input **9*114* to automatically report IP)
- This device provides 5 SIP account registrations. If one account cannot be registered currently, it will automatically switch to the next account to ensure normal communication.
- Equipped with two emergency buttons.

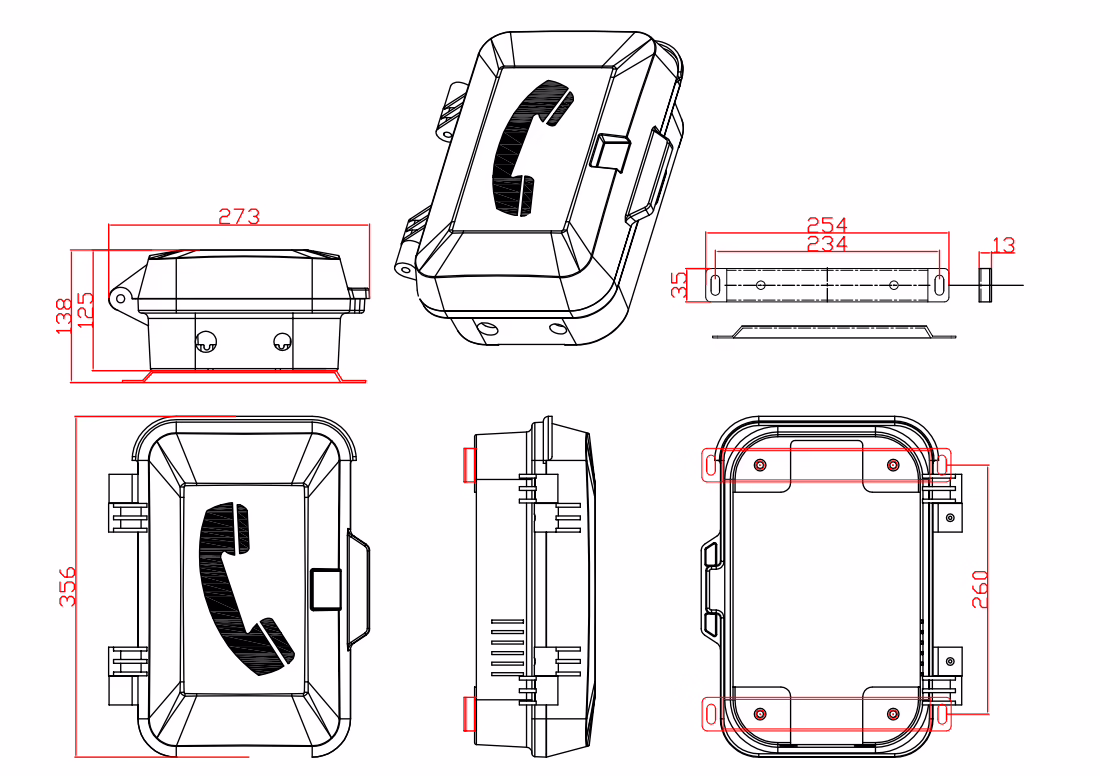

Dimension Diagram
Q:Does this phone have a separate speaker?
A：Yes, this product comes with a 30W waterproof speaker and a warning light.
